TMH91 Series - Infrared Thermo Spot Sensor TMH91.pdf (PDF)TMH-91
FEATURES
bullet Small & Lightweight by resin housing.
bullet The setting emissivity is possible at sensor head.
bullet High temp. type is very wide measurement range.
bullet Temp. range : 0～500℃（2types) & 0～1350℃（1type）.
bullet High speed response 30msec.(analog output type only).
bullet Low temp. type is available to use as temperature sensor too.
bullet Only thermometer's sensor head measurement temperature is possible.
TMZ9
SPECIFICATIONS
  • MODELS & OPTIONS

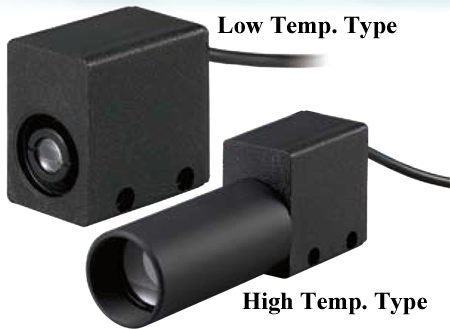

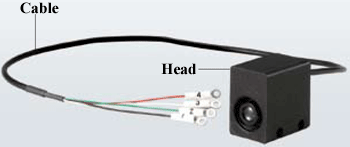

Sensor head 2 type output
【Analog output】
Changeable to 4～20mA, 0～20mA, 0～1V, mV/℃,
Setting emissivity is possible on sensor head without external parameter setter.
【RS232C】
To program the communication software for the setting by PC (Personal Computer) on your side is possible.

※ Power supply : DC4.7～27V, 0.1Amax.
wide arrow
When you need a parameter setter or display module, please use the following setters.
Thermometer connectable type
RS232C only

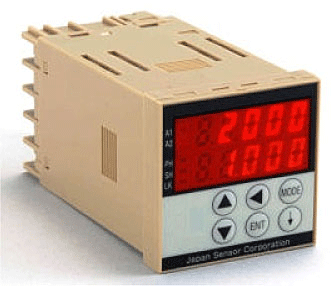

Red arrow		 Indicating Setter TMC9-□□□□
Indicatin setter * Power supply : Selectable RS232C only
【AC85～115V】 or 【DC10～27V】
* Alarm output 1point as standard
* Analog output is option (Selectable in 4 types)
RS232C & AnalogRed arrow
 Parameter Setter PWC1
* Handy type
* AA Battery x 4
* With communication cable 1.8m as accesorry between thermometer and PWC1
RS232C & AnalogRed arrow
 Parameter Setting Set PWZ1-SUP
Parameter setting set:
* Parameter writer software (PWS1)
* USB-RS232C converter (PWU1-U)
* Parameter setting cable (PWB1-PMP)
* Windows XP or Windows2000 in Japanese version is necessary for use of this parameter setting set.
Back to Top
  • THERMOMETER

Click to enlarge the chartRed arrow

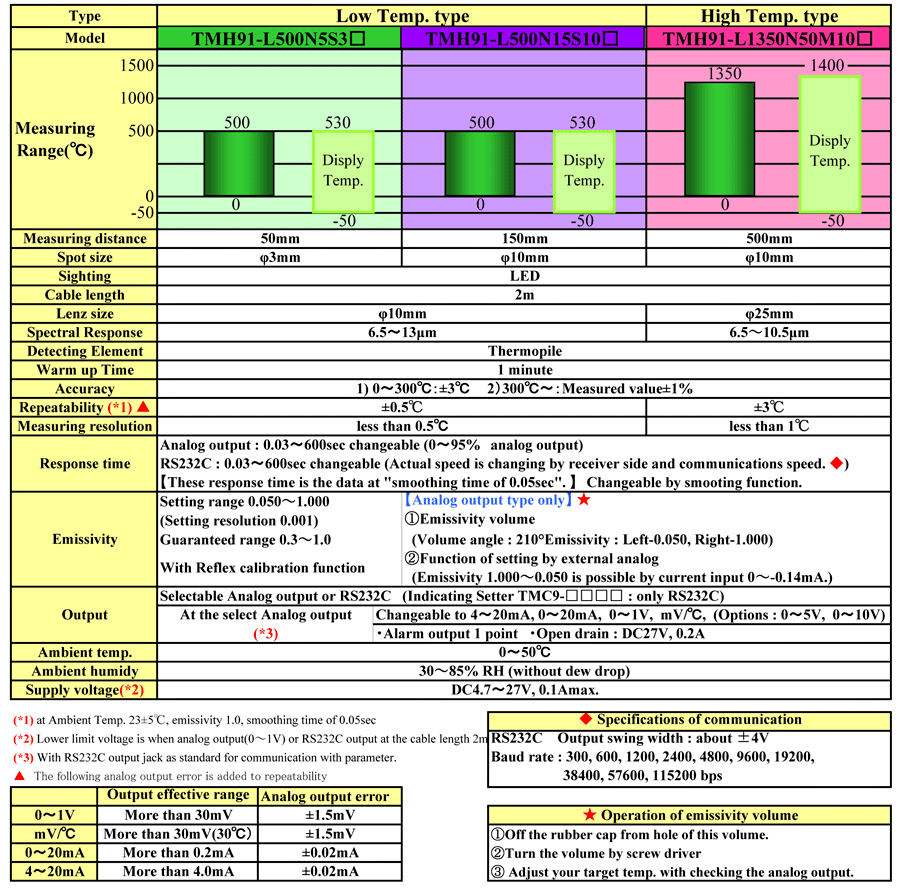

 Specifications of Thermometer
Back to Top
  • INDICATING SETTER

Click to enlarge the chartRed arrow

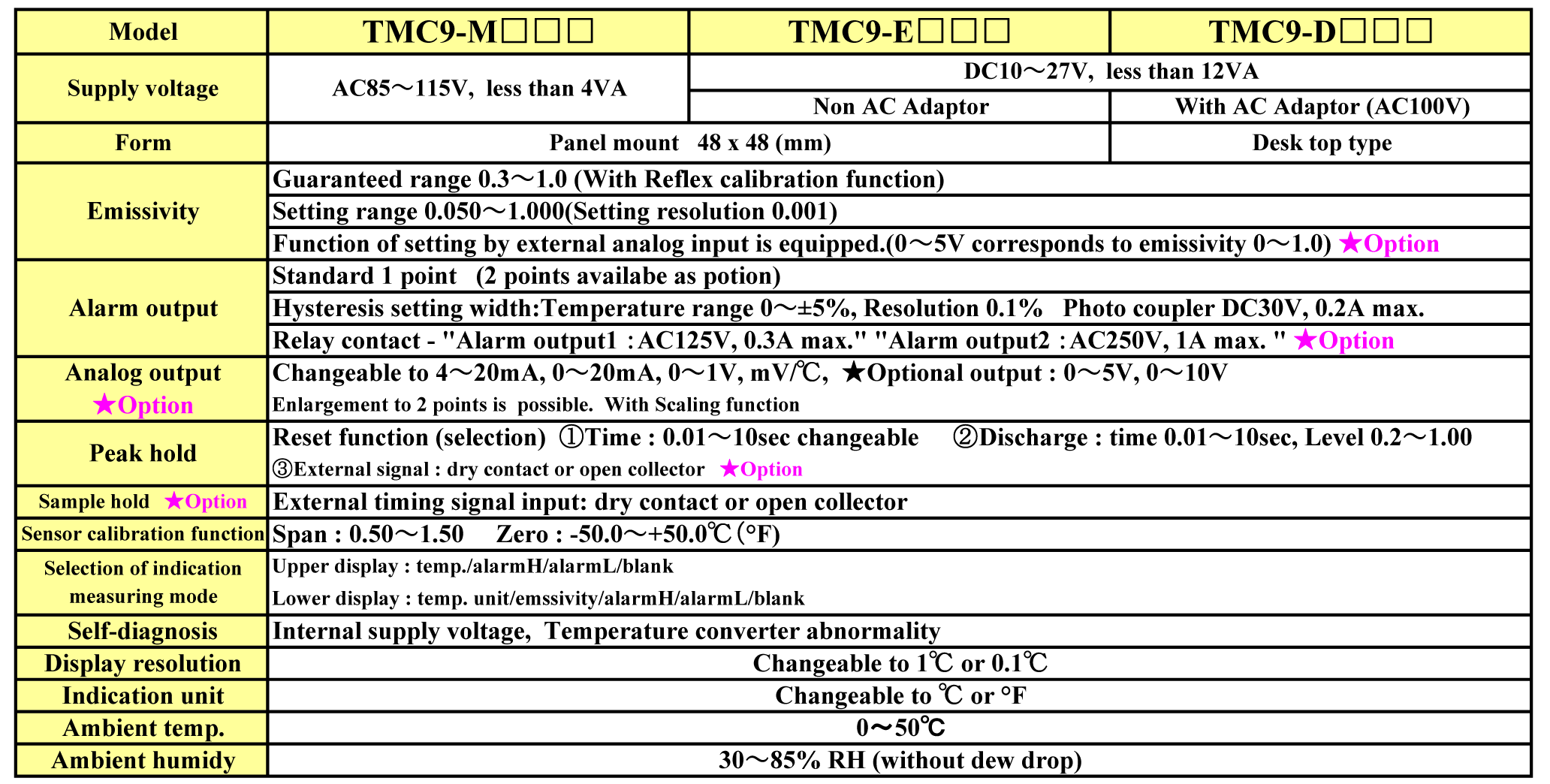

 Specifications of Indicating setter
Back to Top
  • OPTICAL FUNCTIONS

Click to enlarge the chartRed arrow

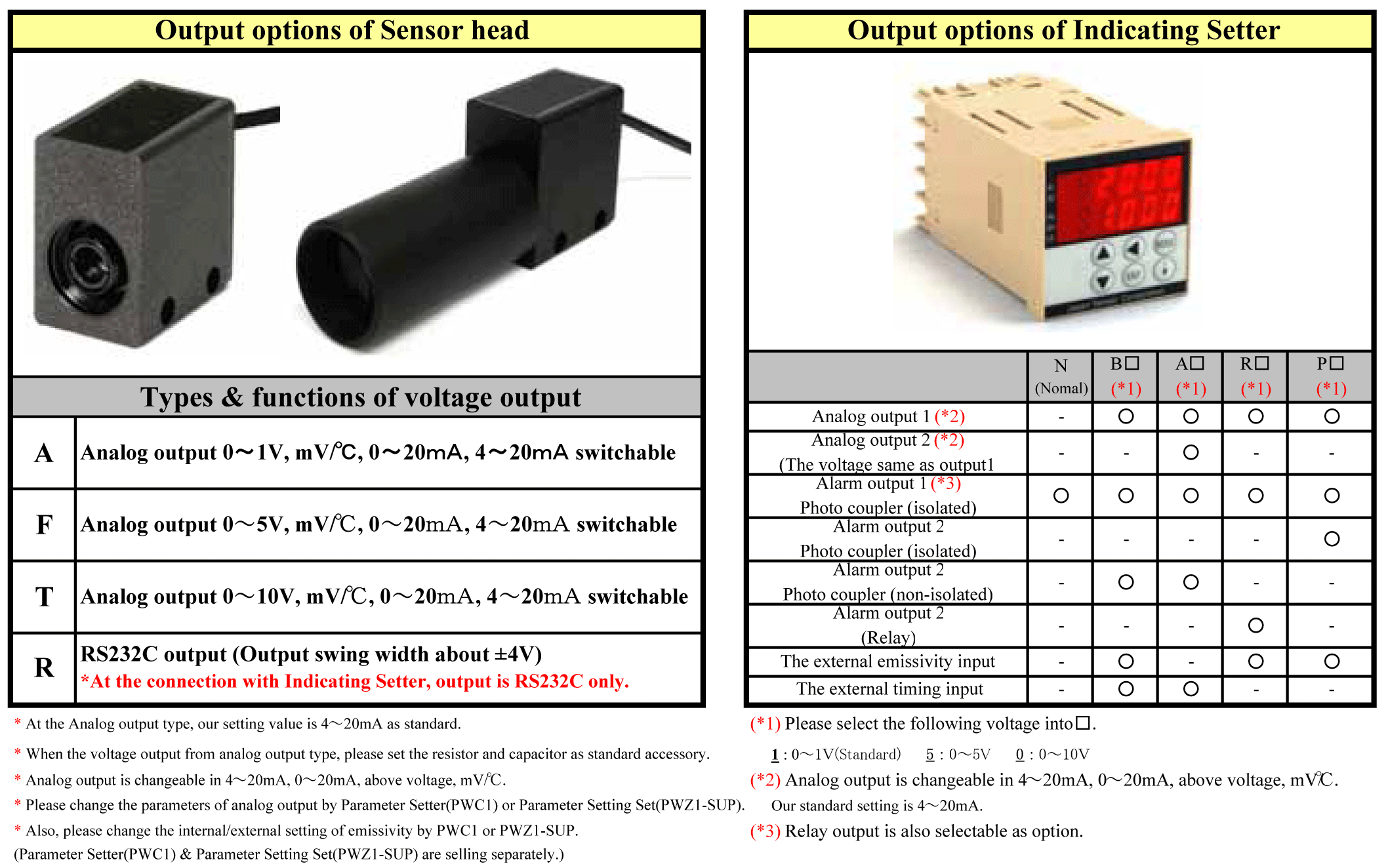

 Specifications of Optional functions
Chart of Optical Path Order Information
Click to enlarge
 Click to enlarge

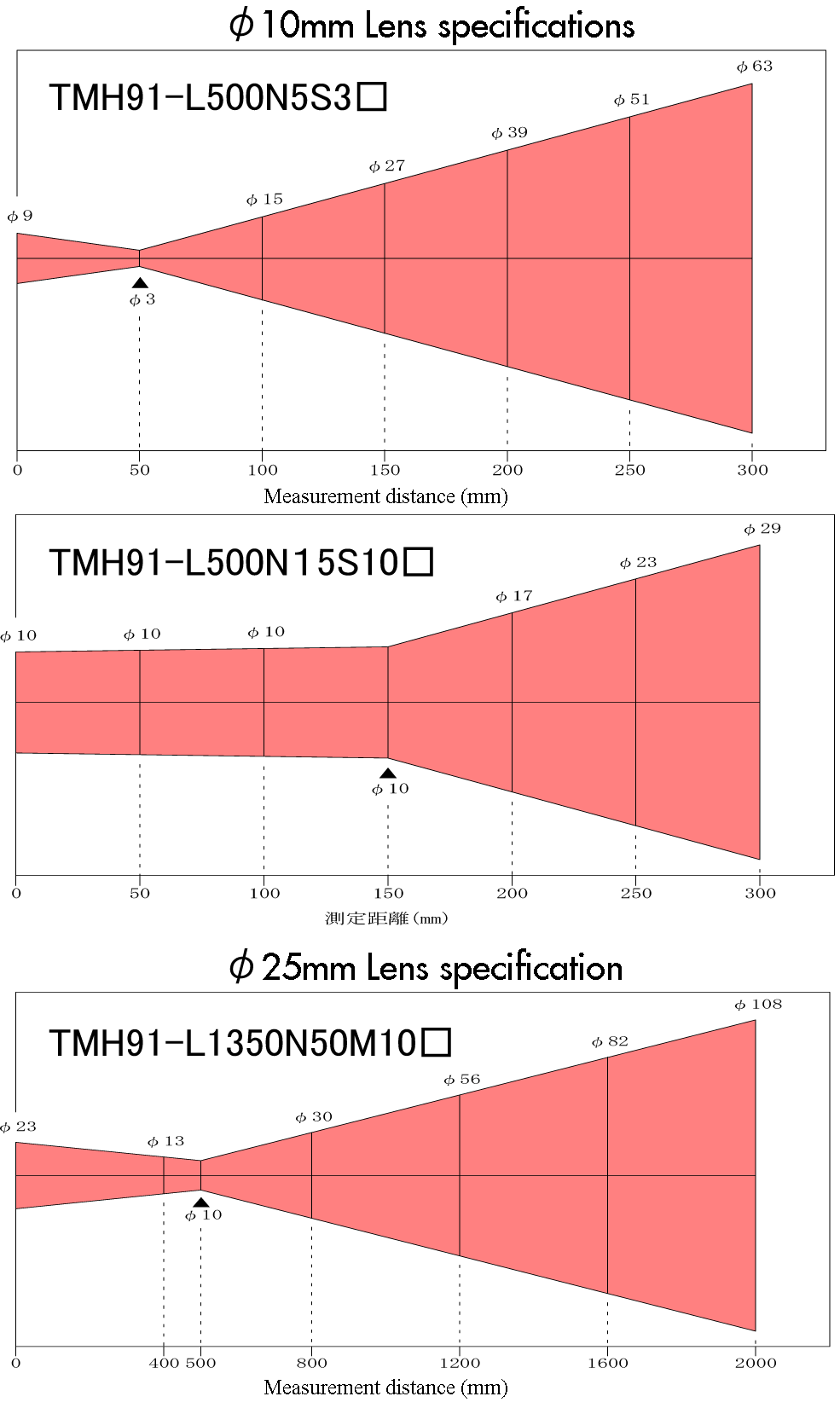

Chart of Optical Path

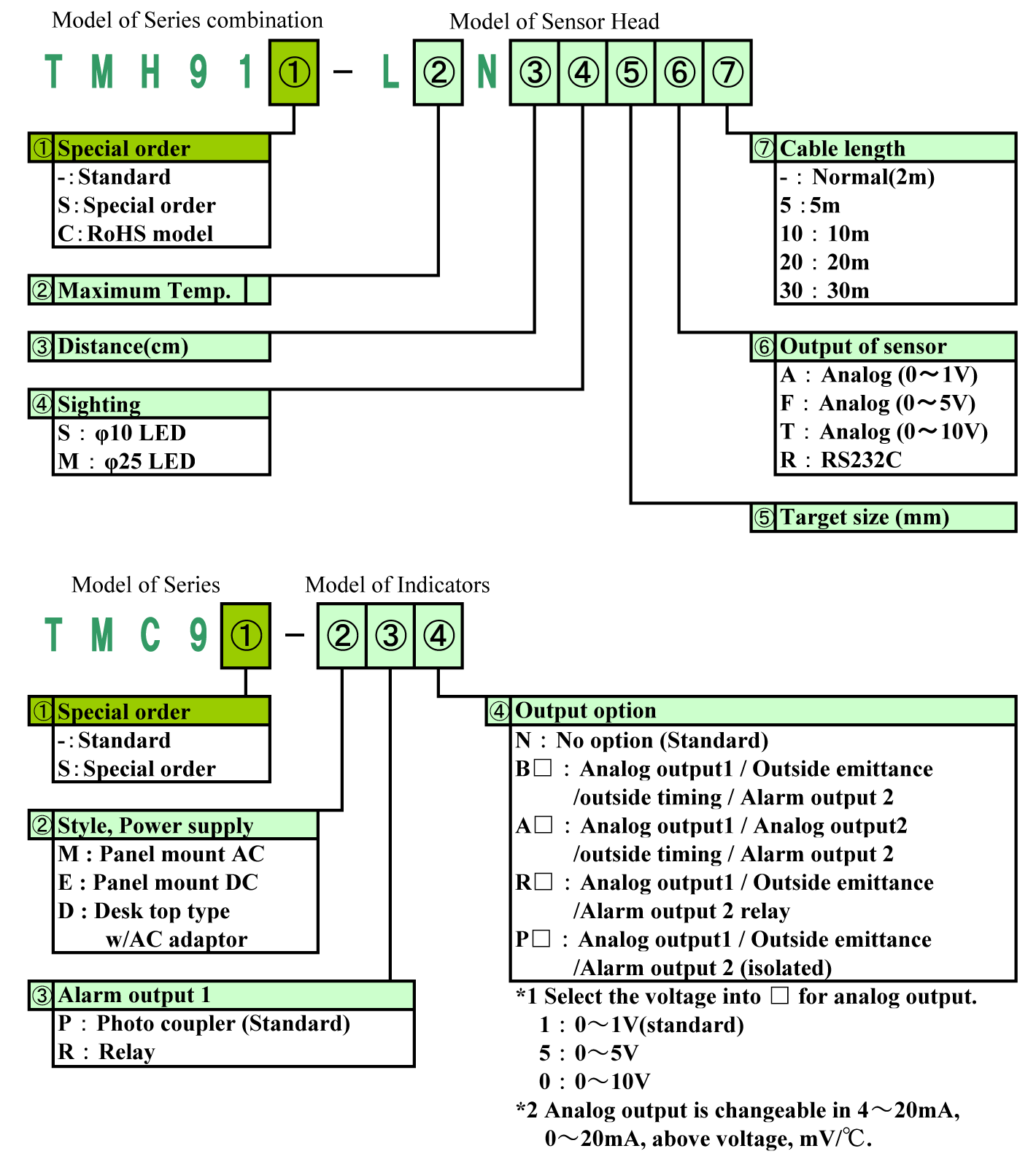

 Order Information
Back to Top
  • SENSOR HEAD STRUCTURAL DRAWING

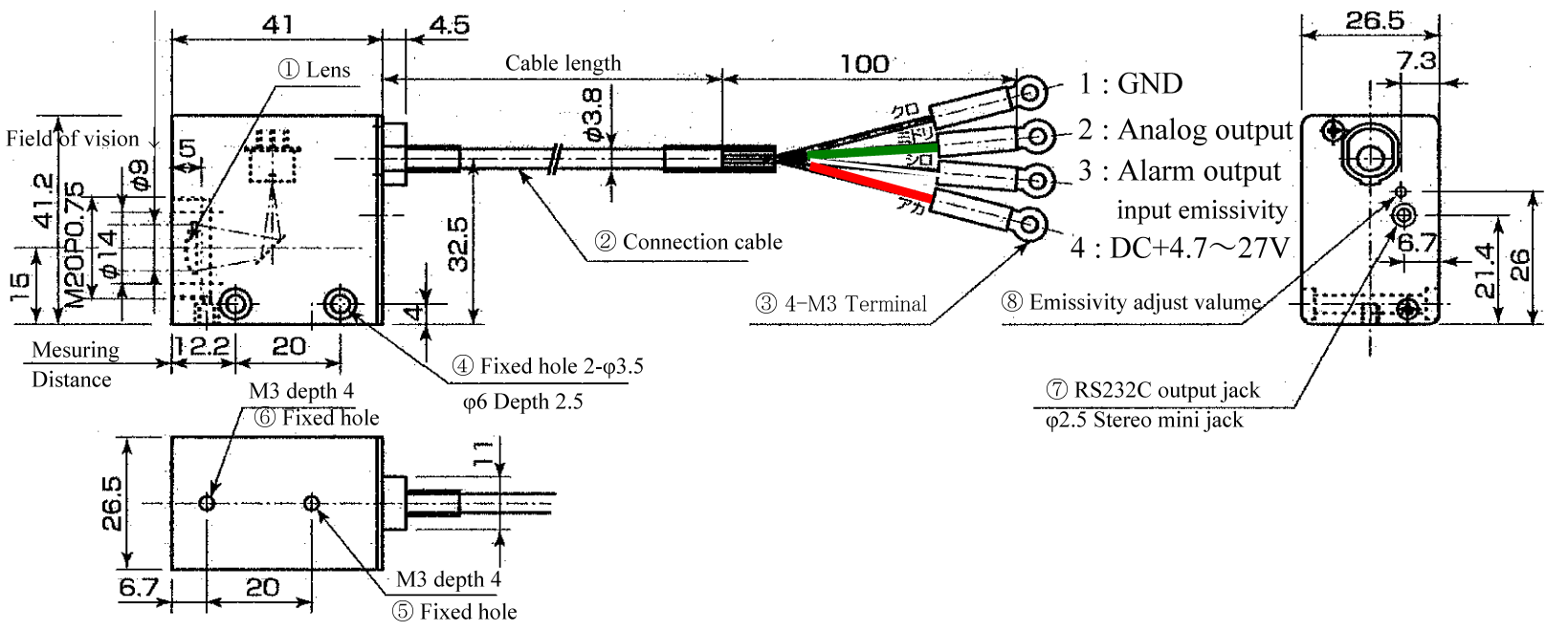

Low Temp. Type (Click to enlarge the drawing.)
TMH91-L500 (φ10mm Lens) Analog output
Low Temp. Type

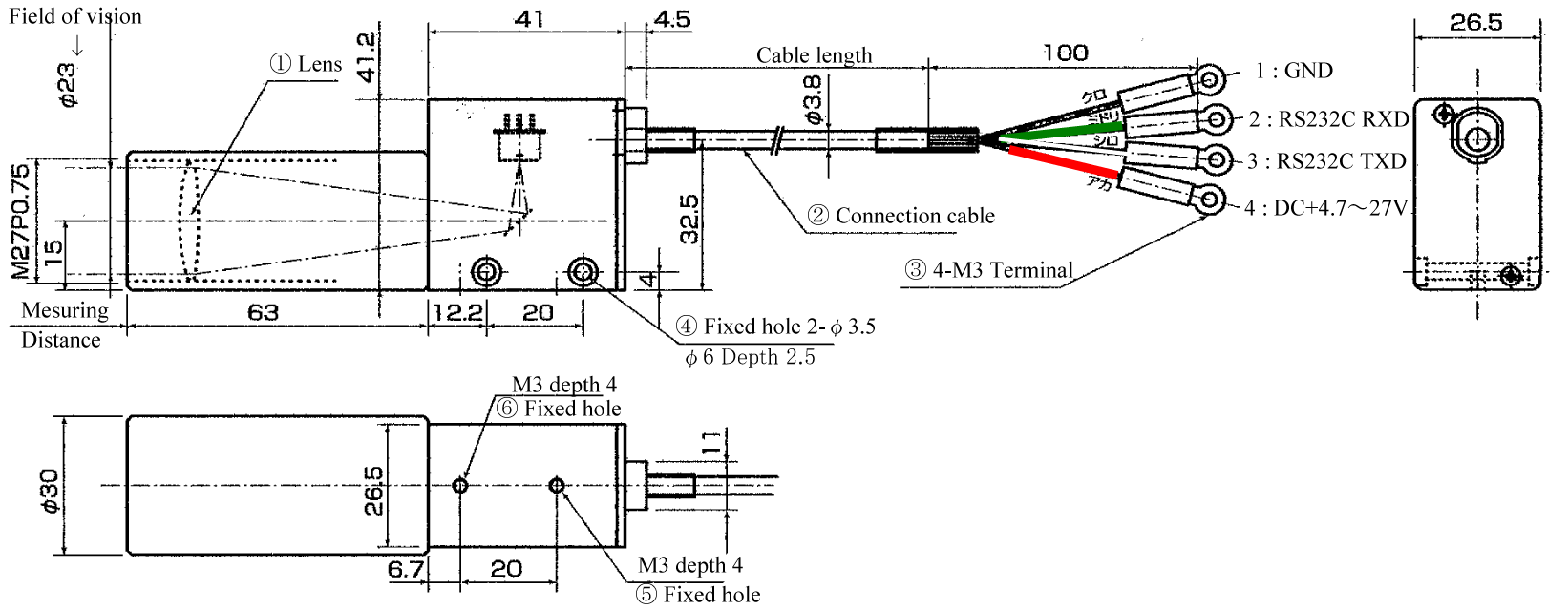

High Temp. Type (Click to enlarge the drawing.)
TMH91-L1350 (φ25mm Lens) RS232C
High Temp. type
Back to Top
APPLICATIONS (Click to enlarge each pictures .)

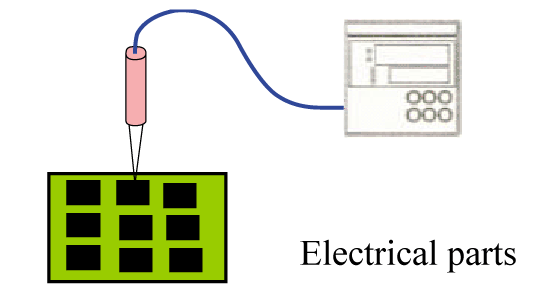

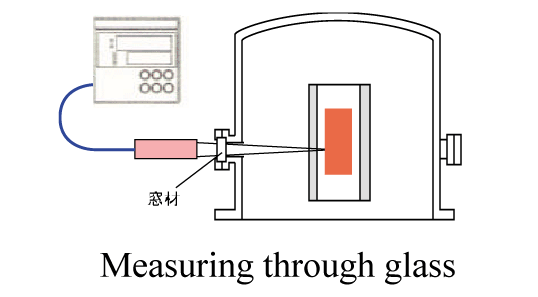

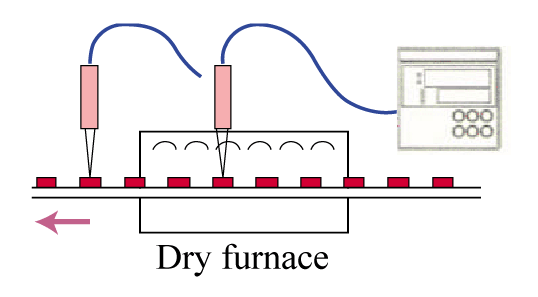

Electrical parts Dry furnace Measuring through glass

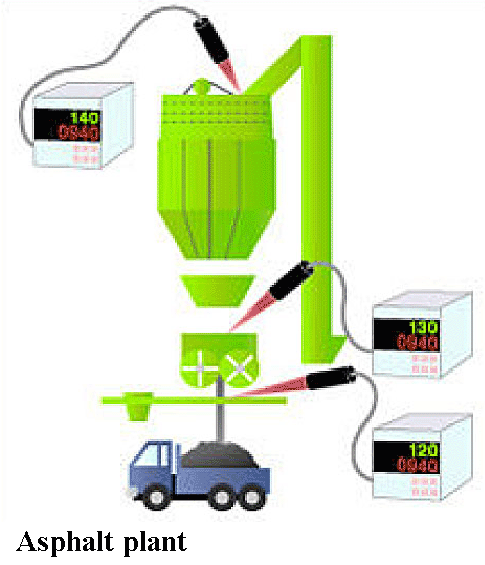

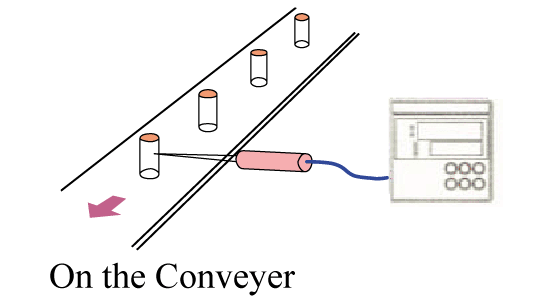

On the Conveyer Sheet/Film Asphalt plant

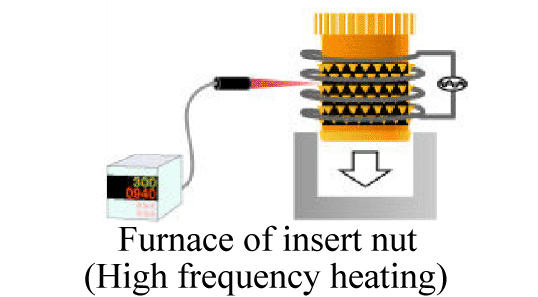

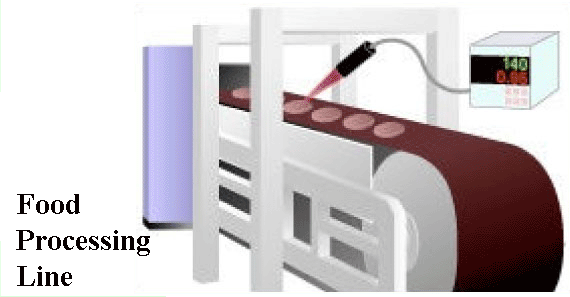

Furnace of insert nut(Hign frequency heating) Food precessing line
